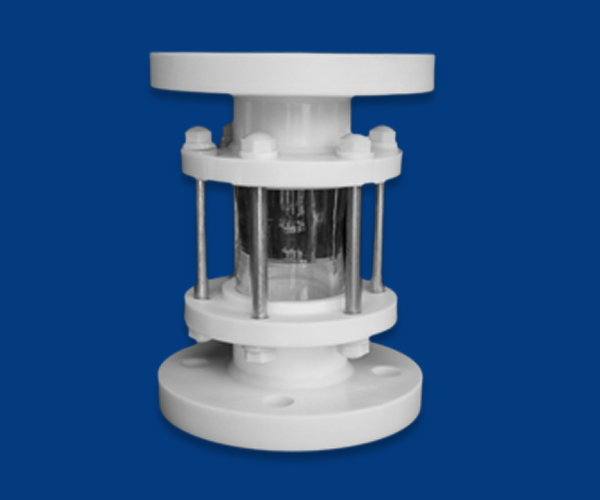

| All Dimension Are In MM (± 2MM) | |||||
|---|---|---|---|---|---|
| Size In | MM | D | D1 | L | T |
| 1" | 25 | 120.0 | 24.0 | 185 | 20.0 |
| 1.1/2" | 40 | 138.0 | 38.0 | 195 | 24.5 |
| 2" | 50 | 163.0 | 50.0 | 205 | 24.5 |
| 2.1/2" | 65 | 182.0 | 62.0 | 250 | 24.5 |
| 3" | 80 | 200.0 | 75.0 | 255 | 26.0 |
| 4" | 100 | 226.0 | 100.0 | 270 | 28.0 |
| 6" | 150 | 305.0 | 150.0 | 395 | 34.0 |
| No | Description | Material |
|---|---|---|
| 01 | Side Piece | PP / HDPE / ISOPP / PVDF |
| 02 | Glass Tube | Glass (Borosil) |
| 03 | Crisent Ring | PTFE |
| 04 | Stud | M.S.(EN) / S.S. |
| 05 | Nut & Washer | M.S.(EN) / S.S. |
| 06 | Nut Cap | PP / HDPE |
| 07 | Stud Tube | PVC / PP Coated |
